Airy Light Sheet Single Photon System

Aurora Light Sheet Microscopy

The Light sheet microscope from M Squared Lasers.

Single photon imaging of samples up to 1 mm thick.

This system brings you access to an airy beam system that can image a very large FOV, great resolution (sub micron isotropic) and go deep in to samples. Motorised acquisition for tiling a really large volume.

Imaging System

Upright Excitation and Detection objective pair (iSPIM configuration) with 4 axis stage control (x, y, z & xz).

Objectives

10x Excitation

20x 0.8NA Detection

Laser Wavelength

405nm, 488nm, 561nm, 640nm

Incubation

Custom Okolab Chamber for temperature and CO2 control

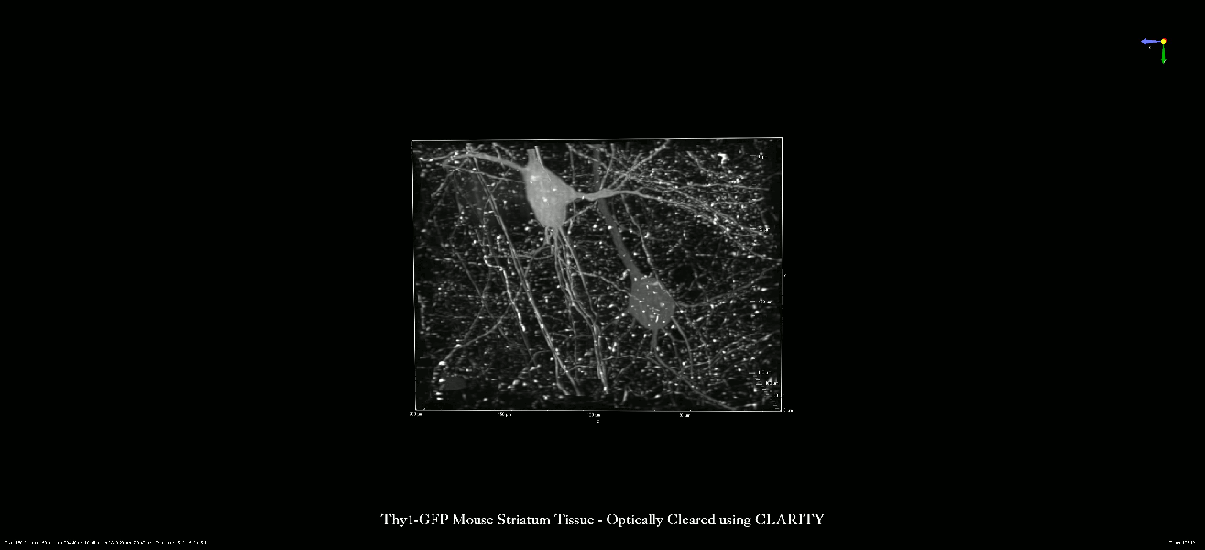

High Resolution deep in tissue
High Resolution deep in tissue

Example Dataset from the Airy SPIM system showing the resolution capable

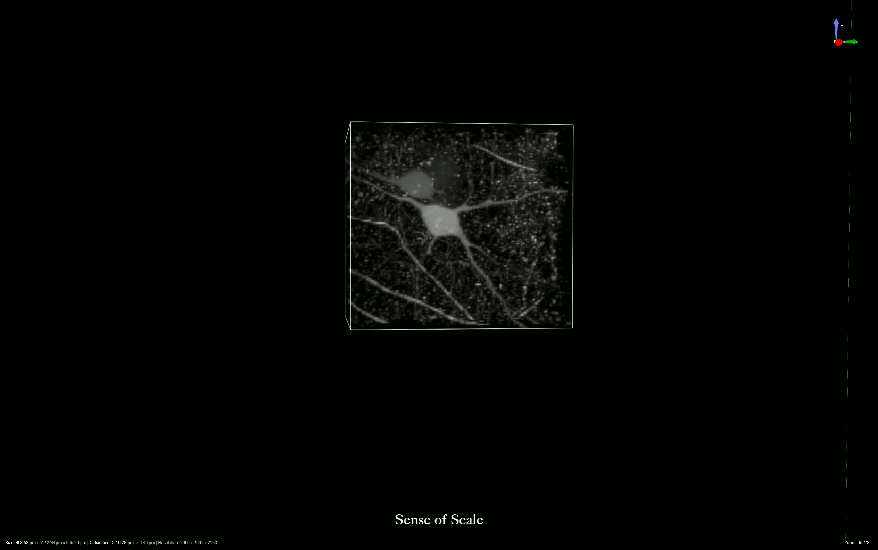

Sense of Scale
Sense of Scale

The same dataset as the previous showing how large a volume we can acquire in a short few minutes

Fabulous looking Airy SPIM
Fabulous looking Airy SPIM

High Resolution deep in tissue
High Resolution deep in tissue

Example Dataset from the Airy SPIM system showing the resolution capable
